Ochiltree No.3 mine

Linlithgow, Linlithgowshire
Local authority:
West Lothian
Seams worked:
Broxburn Shale
Post 1884
Current status of site:
Mine site landscaped to form part of Bridgend golf course


Inclined adit

Serving Champfleurie (Bridgend) Oil Works, subsequently Philpstoun Oil Works

No. 3 Mine was sunk to exploit Broxburn Shale lying south west of Champfleurie (Bridgend) Oil Works, and shared mine head facilities with the longer established No. 2 Mine. The mine closed on collapse of the Linlithgow Oil Company Ltd, but was briefly reopened by James Ross & Company who extended their mineral railway from Philpstoun No. 4 Mine to enable Ochiltree shale to be transported to Philpstoun Oil Works.

Shale-field: Champfleurie, Philpstoun and Blackness shale-field.

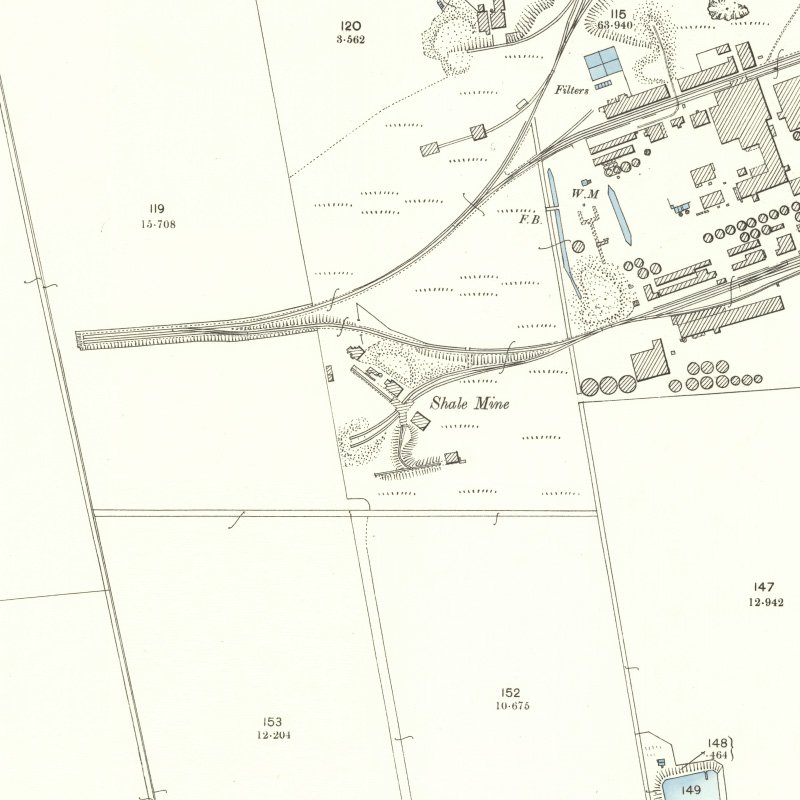

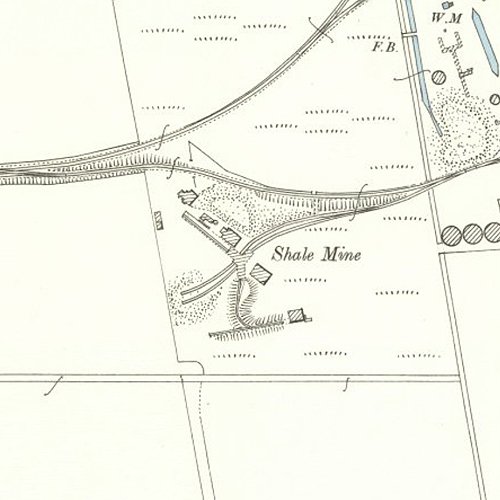

Mapped by the Ordnance Survey of c.1897 - No. 3 Mine is showing heading west from a staging shared with No. 2 Mine.

  • Location & workings at Ochiltree No. 3 mine
    • Show seams:

  • Detailed maps
  • Recent images

  • Newspaper references

      It is understood that No.3 shale mine, formerly worked by Linlithgow Oil Coy. (now defunct) is to be re-opened by Messrs James Ross & Company, Philpstoun Oil Works, who some time ago acquired a lease on the minerals which were leased to the Linlithgow Oil Company. The shale from the mine will be conveyed to the retorts at Philpstoun Oil Works, and it is understood that it is with that object in view Messrs. Ross & Company are constructing a railway crossing the public road at Auldhill Entry to the south of Bridgend Rows.

      West Lothian Courier, 17th January 1908

  • External references
    • Coal Authority Mine Abandonment Catalogue No. 5882, showing workings in the Broxburn Shales from Ochiltree No. 2 and 3, abandoned in 1912.
